Description

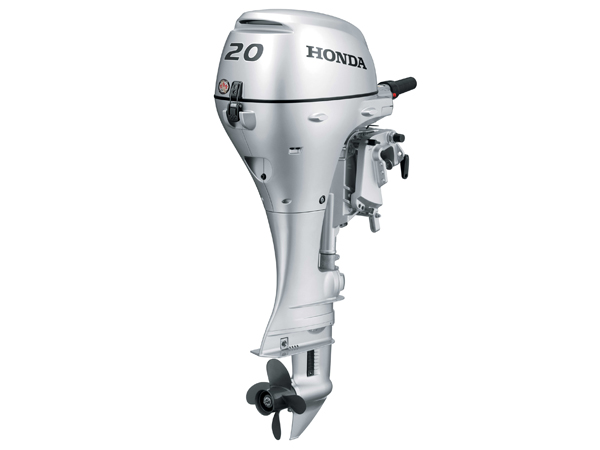

2017 HONDA 20 HP BF20D3SH Outboard Motor
Honda Outboards are legend for quality and durability. Honda 20 HP Outboard model BF20D3SH comes equipped with the 15 inch short shaft and easy manual start. This 20 HP delivers all the power you crave and then some.
2017 HONDA 20 HP BF20D3SH Outboard Motor
Reliable, efficient 4-stroke design
Large Displacement – better performance
Easy One Hand Starting
Lightweight Design
Ultra Low 3 Star CARB Emissions
True 5 Warranty
PGM Ignition – optimal operation
High Output Charging – more power!
Engine Alert System – Keeps you informed
4-Front Corrosion Protection System – Fights the elements
Longer Tiller Handle – better control
Auto Start Enrichment – easy starts
Pendulum Mount System – Smooth operation
Convenient, Up Front Tiller Controls
EZ Steer Friction Control
Shallow Water Drive
Positive Lubrication – better durability
3 Stage Carburetion – better fuel economy
Integrated Carrying Handle – easier transport
2017 HONDA 20 HP BF20D3SH Outboard Motor
Model BF20D3SH
Model Year 2017
SKU BF20D3SH-17
Weight 114.0000
Manufacturer Honda
Country of Manufacture Japan
Horsepower 20hp
Shaft Length 15″ (Short)
Steering Tiller
Starting Manual
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 350 cc (21.5 cubic inches)
Bore and Stroke 59 mm x 64 mm (2.3 x 2.5 inches)
Full Throttle RPM Range 5,000-6,000 RPM
Ignition System PGM-IG
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type Unleaded Gasoline (86 octane)
Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type FC-W 10W-30
Oil Capacity Please Inquire.
Lubrication Wet Sump
Alternator 6-Amp (76 watt)
Cooling System Water Cooled
Saltwater Rated Yes
Gear Ratio 2.08:1
Gear Shift Forward, Neutral, Reverse
Propeller 9¼ x 10 inch 4-Blade Aluminum
Internal Battery NO (Ref 390597)
