Description

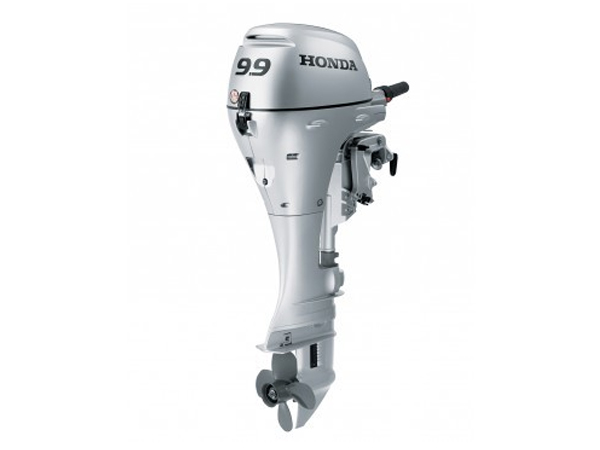

2017 HONDA 9.9 HP BF10DK3LH Outboard Motor
Efficient and Powerful describe Honda’s 9.9 HP Outboard model #BF10DK3LH. Honda Marine technology is always advancing and improving. Honda outboard’s lightweight design is compact and easy to transport, but with Honda that does not mean you sacrifice power and quality. In fact this outboard motor has all the power you need and then some, plus extra battery charging power. This model comes equipped with a long 20 inch shaft, easy manual start and battery charging capability. Honda backs up their claims for quality and dependability with a true 5 year warranty. The best warranty in the industry.
2017 HONDA 9.9 HP BF10DK3LH Outboard Motor
Reliable, efficient 4-stroke design
Easy One Hand Starting
True 5 Warranty
Ultra Low 3 Star CARB Emissions
4-Front Corrosion Protection System – Fights the elements
Available with Power Thrust Design (BFP) – better performance for heavy loads
Reverse Exhaust Relief – increased manueverability (BFP models)
Longer Tiller Handle – improved control
PGM Ignition – optimal operation
Engine Alert System – Keeps you informed
Best in Class High Output Charging
Lightweight Rounded Design
Auto Start Enrichment – easy starts
Pendulum Mount System – smooth operation
EZ Steer Friction Control
Shallow Water Drive
Up Front Tiller Controls – convenient shifting
Integrated Carrying Handle – easier transport
Positive Lubrication for better durability
2017 HONDA 9.9 HP BF10DK3LH Outboard Motor
Model BF10DK3LH
Model Year 2017
SKU BF10DK3LH-17
Weight 98.0000
Manufacturer Honda
Country of Manufacture Japan
Horsepower 9.9hp
Shaft Length 20″ (Long)
Steering Tiller
Starting Manual
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 222 cc (13.5 cubic inches)
Bore and Stroke 58 x 42 mm (2.3 x 1.7 in.)
Full Throttle RPM Range 5000-6000 RPM
Ignition System PGM-IG
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type Unleaded Gasoline (86 octane)
Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type FC-W 10W-30
Oil Capacity Please inquire.
Lubrication Wet Sump
Alternator 6-Amp (76 watt)
Cooling System Water Cooled
Saltwater Rated YES
Gear Ratio 2.33:1
Gear Shift Forward, Neutral, Reverse
Propeller 9.25″ Dia. X 8″ Pitch 4-Blade Aluminum
Internal Battery NO (Ref 46ba9f)
