Description

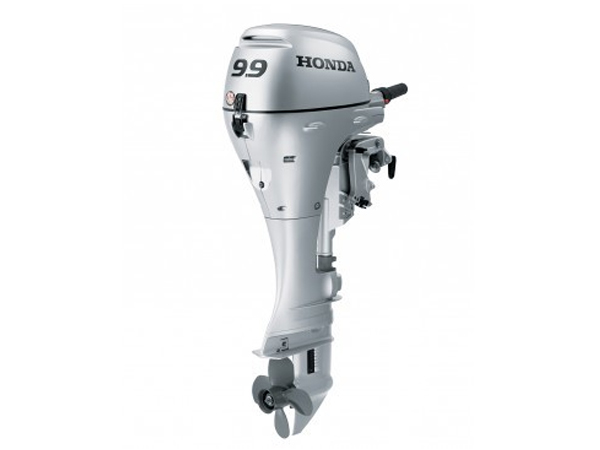

2017 HONDA 9.9 HP BF10DK3LHS Outboard Motor
9.9 HP Honda Outboard, Model #BF10DK3LHS comes equipped with the long 20 inch shaft and the convenience of both manual easy start and electric start. You will find power to spare on the water plus extra battery power with this model. As with all Honda outboards, high tech design means a lightweight compact portable, that does not sacrifice quality or durability. You will be impressed with the fuel efficiency and the smooth quiet ride across the water delivered by this model.Honda Outboards come with the best warranty in the industry. A true 5 year warranty.
2017 HONDA 9.9 HP BF10DK3LHS Outboard Motor
Reliable, efficient 4-stroke design
Easy One Hand Starting
True 5 Warranty
Ultra Low 3 Star CARB Emissions
4-Front Corrosion Protection System – Fights the elements
Available with Power Thrust Design (BFP) – better performance for heavy loads
Reverse Exhaust Relief – increased manueverability (BFP models)
Longer Tiller Handle – improved control
PGM Ignition – optimal operation
Engine Alert System – Keeps you informed
Best in Class High Output Charging
Lightweight Rounded Design
Auto Start Enrichment – easy starts
Pendulum Mount System – smooth operation
EZ Steer Friction Control
Shallow Water Drive
Up Front Tiller Controls – convenient shifting
Integrated Carrying Handle – easier transport
Positive Lubrication for better durability
2017 HONDA 9.9 HP BF10DK3LHS Outboard Motor
Model BF10DK3LHS
Model Year 2017
SKU BF10DK3LHS-17
Weight 98.0000
Manufacturer Honda
Country of Manufacture Japan
Horsepower 9.9hp
Shaft Length 20″ (Long)
Steering Tiller
Starting Electric
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 222 cc (13.5 cubic inches)
Bore and Stroke 58 x 42 mm (2.3 x 1.7 in.)
Full Throttle RPM Range 5000-6000 RPM
Ignition System PGM-IG
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type Unleaded Gasoline (86 octane)
Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type FC-W 10W-30
Oil Capacity Please inquire.
Lubrication Wet Sump
Alternator 12-Amp (148 watt)
Cooling System Water Cooled
Saltwater Rated YES
Gear Ratio 2.33:1
Gear Shift Forward, Neutral, Reverse
Propeller 9.25″ Dia. X 8″ Pitch 4-Blade Aluminum
Internal Battery NO
2017 HONDA 9.9 HP BF10DK3LHS Outboard Motor
What’s in the box?
Fuel Tank (3 gallon)
Quick Connect Fuel Line
Aluminum Propeller
Owner’s Manual & Tool Kit
True 5-Year Warrant (Ref 0e0193)
