Description

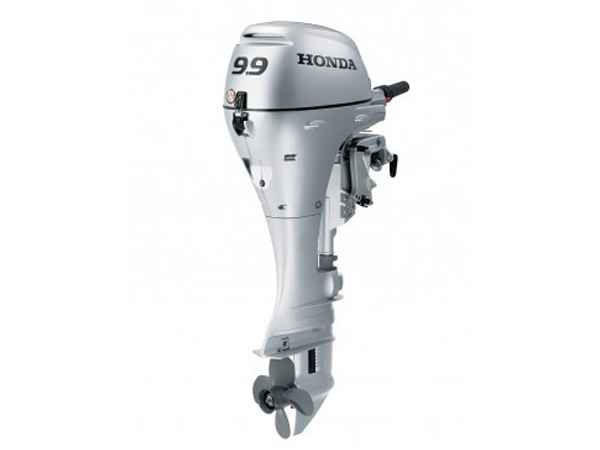

2017 HONDA 9.9 HP BFP10D3XHS Outboard Motor
You can depend on Honda Marine to build quality, dependable and durable outboard motors, but with the 9.9 HP Honda Outboard Model BFP10D3XHS equipped with the extra long 25 inch shaft, you get so much more! Special features on this model include convenience of electric start along side your manual rope start! Without sacrificing quality of power, Honda Marine has designed a lightweight, compact outboard that is truly easy to transport and once you get it to your boat this engine provides you with a smooth, quiet ride across the water. Additionally with every Honda outboard you receive a 5 year factory warranty!
2017 HONDA 9.9 HP BFP10D3XHS Outboard Motor
Reliable, efficient 4-stroke design
Easy One Hand Starting
True 5 Warranty
Ultra Low 3 Star CARB Emissions
4-Front Corrosion Protection System – Fights the elements
Available with Power Thrust Design (BFP) – better performance for heavy loads
Reverse Exhaust Relief – increased manueverability (BFP models)
Longer Tiller Handle – improved control
Power Thrust
PGM Ignition – optimal operation
Engine Alert System – Keeps you informed
Best in Class High Output Charging
Lightweight Rounded Design
Auto Start Enrichment – easy starts
Pendulum Mount System – smooth operation
EZ Steer Friction Control
Shallow Water Drive
Up Front Tiller Controls – convenient shifting
Integrated Carrying Handle – easier transport
Positive Lubrication for better durability
2017 HONDA 9.9 HP BFP10D3XHS Outboard Motor
Model BFP10D3XHS
Model Year 2017
SKU BFP10D3XHS-17
Weight 113.0000
Manufacturer Honda
Country of Manufacture Japan
Horsepower 9.9hp
Shaft Length 25″ (Extra Long)
Steering Tiller
Starting Electric
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 222 cc (13.5 cubic inches)
Bore and Stroke 58 x 42 mm (2.3 x 1.7 in.)
Full Throttle RPM Range 5000-6000 RPM
Ignition System PGM-IG
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type Unleaded Gasoline (86 octane)
Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type FC-W 10W-30
Oil Capacity Please inquire.
Lubrication Wet Sump
Alternator 12-Amp (148 watt)
Cooling System Water Cooled
Saltwater Rated YES
Gear Ratio 2.33:1
Gear Shift Forward, Neutral, Reverse
Propeller 10″ Dia. X 6.5″ Pitch 4-Blade Aluminum
Internal Battery NO
2017 HONDA 9.9 HP BFP10D3XHS Outboard Motor
What’s in the box?
Fuel Tank (3 gallon)
Quick Connect Fuel Line
Aluminum Propeller
Owner’s Manual & Tool Kit
True 5-Year Warrant (Ref 839ab4)
