Description

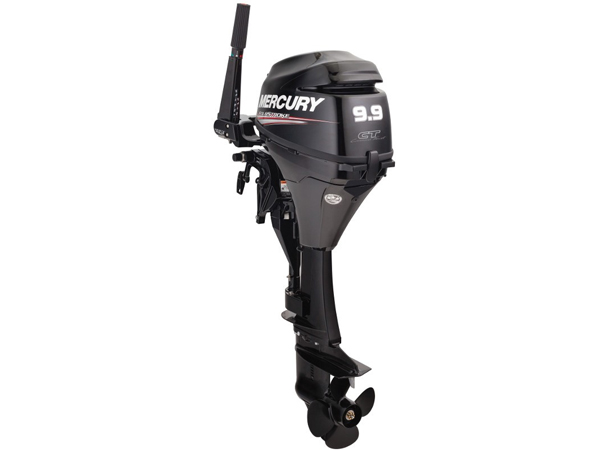

2017 Mercury 9.9 HP 9.9ELH-CT Outboard Motor
Mercury’s portable 9.9 HP Outboard motor with Command Thrust delivers the power, thrust, and control that wider, heavier boats demand. A larger prop increases control, a taller gear case puts the prop deeper below turbulent water for enhanced performance. the Mercury 9.9 outboard engine is an excellent choice for sailboat and trolling/kicker applications..The 9.9 HP Mercury Outboard Motor model: 9.9ELH-CT is equipped with a long 20 inch shaft and electric start motor, Mercury’s multi-function tiller handle, a 3 year factory warranty that begins the date of purchase, and fuel efficient operation with the reliability that Mercury is known for.
2017 Mercury 9.9 HP 9.9ELH-CT Outboard Motor
Compact and Lightweight
Designed for Heavy Applications
CommandThrust Lower Unit (2.42:1 Gear Ratio)
High Thrust Propeller
Oversized Anti-Ventilation Plate
Electric Start + 12V 76W 6A Alternator
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Trim System (5 positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty
2017 Mercury 9.9 HP 9.9ELH-CT Outboard Motor
Model 9.9ELH-CT
Model Year 2017
SKU 9.9ELH-CT-17
Weight 103.0000
Manufacturer Mercury
Country of Manufacture Japan
Horsepower 9.9hp
Shaft Length 20″ (Long)
Steering Tiller
Starting Electric
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 208 cc (12.8 cubic inches)
Bore and Stroke 55 x 44 mm (2.16 x 1.73 inches)
Full Throttle RPM Range 5000-6000
Ignition System Digital CD Ignition w/Electronic Spark Advance
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type 87 Octane (up to 10% ethanol content)
Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
Oil Capacity 27 fl. Oz. (800 ml)
Lubrication Trochoid Pump
Alternator 12V 76W 6A (standard on electric start models)
Cooling System Water-Cooled, Thermostatically Controlled
Saltwater Rated YES
Gear Ratio 2.42:1 BigFoot Gearcase
Gear Shift Forward-Neutral-Reverse (shift in tiller handle)
Propeller BigFoot 4-Blade High Thrust Aluminum Propeller
Internal Battery No
2017 Mercury 9.9 HP 9.9ELH-CT Outboard Motor
What’s in the box?
Fuel Tank (3.2 gallon)
Mercury 3-Year Warranty
4-Blade Aluminum Prop
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit (Ref 9dfcd5)
