Description

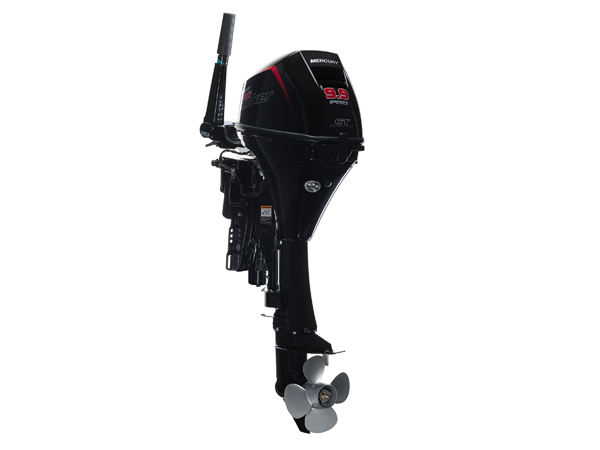

2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor
The Mercury 9.9 HP Outboard motor with Command Thrust delivers the power, thrust, and control that wider, heavier boats demand. A 20 % larger prop increases control and a taller gearcase puts the prop deeper below turbulent water for improved performance. A low 2.42:1 gear ratio and high thrust propeller make the Mercury 9.9 outboard engine an excellent choice for sailboat and trolling/kicker applications. The Command Thrust over sized anti-ventilation plate prevents air from being drawn into the propeller, further enhancing efficiency and performance. The 9.9 HP Mercury Outboard Motor model: 9.9EXLHPT-CT-PK is equipped with an extra long 25 inch shaft and Mercury’s 3 year warranty.
2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor
Compact and Lightweight
Designed for Heavy Applications
CommandThrust Lower Unit (2.42:1 Gear Ratio)
High Thrust Propeller
Oversized Anti-Ventilation Plate
Electric Start + 12V 76W 6A Alternator
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Heavy Duty Transom Mounting Bracket
Power Operated Tilt (Range: -4° to 75°)
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty
2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor
Model 9.9EXLHPT-CT-PK
Model Year 2017
SKU 9.9EXLHPT-CT-PK-17
Weight 114.0000
Manufacturer Mercury
Country of Manufacture Japan
Horsepower 9.9hp
Shaft Length 25″ (Extra Long)
Steering Tiller
Starting Electric
Trim & Tilt Power Tilt
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 208 cc (12.8 cubic inches)
Bore and Stroke 55 x 44 mm (2.16 x 1.73 inches)
Full Throttle RPM Range 5000-6000
Ignition System Digital CD Ignition w/Electronic Spark Advance
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type 87 Octane (up to 10% ethanol content)
Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
Oil Capacity 27 fl. Oz. (800 ml)
Lubrication Trochoid Pump
Alternator 12V 76W 6A (standard on electric start models)
Cooling System Water-Cooled, Thermostatically Controlled
Saltwater Rated YES
Gear Ratio 2.42:1 Command Thrust Gearcase
Gear Shift Forward-Neutral-Reverse (shift in tiller handle)
Propeller Command Thrust 4-Blade High Thrust Aluminum Propeller
Internal Battery No
2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor
What’s in the box?
Fuel Tank (3.2 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
4-Blade Aluminum Prop
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit (Ref 758874)
