Description

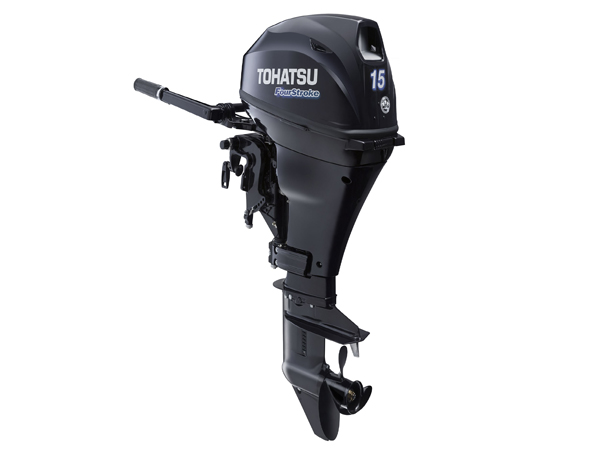

2017 Tohatsu 15 HP MFS15DS Outboard Motor
The Tohatsu 15 HP outboard motor, Model #MFS15DS with the 15 inch short shaft, tiller steering and manual rope start is both affordable and perfect for larger sized jon boats, skiff or larger inflatable boats. Based on dependability and efficiency, Tohatsu’s 15 HP outboard was named as top choice in the 15 hp outboard motor class in Boating Magazine’s Buyer Guide. This powerful portable delivers the power you need at a price that will not break the bank.
Standard features include forward, neutral and reverse shift lever on the front of the engine, a 3.1 gallon external fuel tank and a 5 year factory warranty.
2017 Tohatsu 15 HP MFS15DS Outboard Motor
Decompression Device for Easy Starting
Advanced Digital CD Ignition System
Low Oil Pressure Warning System
ESG Over Rev RPM Limiter
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Easy to Replace Canister Style Oil Filter
Sacrificial Zinc Anodes + Trim Tab
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Adjustable Steering Friction Setting
Tuned Intake for Crisp Acceleration
Carburetor Accelerator Pump
Start-In-Gear Protection
Thermostatically Controlled Cooling
Advanced Cross Flow Induction System
Shallow Water Drive; 6 Trim Positions
Quiet Through-the-Propeller Exhaust
3.1 Gallon Fuel Tank / Fuel Line
Safety Lanyard Cut-Off Switch
Operating Manual & Emergency Tool Kit
Tohatsu 5-Year Warranty
2017 Tohatsu 15 HP MFS15DS Outboard Motor
Model MFS15DS
Model Year 2017
SKU MFS15DS-17
Weight 114.4000
Manufacturer Tohatsu
Country of Manufacture Japan
Horsepower 15hp
Shaft Length 15″ (Short)
Steering Tiller
Starting Manual
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 351 cc (21.41 cubic inches)
Bore and Stroke 61 x 60 mm (2.40 x 2.36 inches)
Full Throttle RPM Range 5,000-6,000 RPM
Ignition System Digital CD Ignition
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type Unleaded Gasoline (87 octane)
Fuel Tank / Fuel Line 3.1 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)
Oil Capacity 1 Quart (1000 ml)
Lubrication Wet Sump
Alternator Optional 12V 145W 12A (installation required)
Cooling System Water-Cooled, Thermostatically Controlled
Saltwater Rated Yes
Gear Ratio 2.15:1
Gear Shift Forward-Neutral-Reverse (front mount shifter)
Propeller 9.2″ Dia. X 9.8″ Pitch 3-Blade Aluminum
Internal Battery No
2017 Tohatsu 15 HP MFS15DS Outboard Motor
What’s in the box?
Fuel Tank (3.1 gallon)
Quick Connect Fuel Line
Aluminum Propeller
Owner’s Manual & Tool Kit
Tohatsu 5-Year Warranty (Ref 5737c6)
