Description

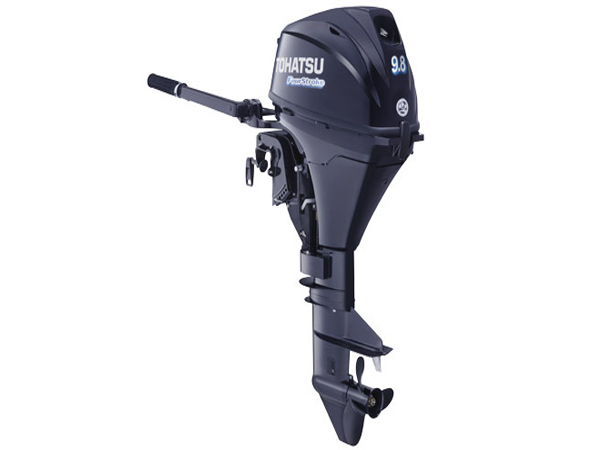

2017 Tohatsu 9.8 HP MFS9.8BS Outboard Motor
The Tohatsu 9.8hp outboard motor has set the standard for affordable and portable power. The Tohatsu model # HP MFS9.8BS Weighs just 81.5 lbs with compact features making it easy to carry. This model is equipped with a short 15 inch shaft and a manual rope pull start. The Tohatsu 9.8hp outboard engine is the lightest four-stroke in its class yet still delivers that power you crave.
This Tohatsu outboard engine combine a quiet smooth ride with plenty of power and great fuel efficiency. The Tohatsu 9.8 outboard motor is an excellent choice for small skiffs, inflatables as well as sailboats for auxillary power.
2017 Tohatsu 9.8 HP MFS9.8BS Outboard Motor
Lightest Outboard in Class @ 81.5 lbs
Advanced Digital CD Ignition System
Low Oil Pressure Warning Indicator
ESG Over Rev RPM Limiter
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Sacrificial Zinc Anodes +? Trim Tab
Forward Mounted? Gear Shift Selector
Twist-Grip Throttle with Tension Control
Adjustable Steering Friction Setting
Advanced Fast-Idle Choke Feature
Start-In-Gear Protection
Thermostatically Controlled Cooling
Advanced Cross Flow Induction System
Shallow Water Drive; 6 Trim Positions
Quiet? Through-The-Propeller Exhaust
3.1 Gallon Fuel Tank / Fuel Line
Safety Lanyard Cut-Off Switch
Operating Manual & Emergency Tool Kit
Tohatsu 5-Year Warranty
2017 Tohatsu 9.8 HP MFS9.8BS Outboard Motor
Model MFS9.8BS
Model Year 2017
SKU MFS9.8BS-17
Weight 81.5000
Manufacturer Tohatsu
Country of Manufacture Japan
Horsepower 9.8hp
Shaft Length 15″ (Short)
Steering Tiller
Starting Manual
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 209 cc (12.8 cubic inches)
Bore and Stroke 55 x 44 mm (2.17 x 1.73 inches)
Full Throttle RPM Range 5,000-6,000 RPM
Ignition System Digital CD Ignition
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type Unleaded Gasoline (87 octane)
Fuel Tank / Fuel Line 3.1 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)
Oil Capacity 27 fl. oz. (800 ml)
Lubrication Wet Sump
Alternator Optional 12V 80W 6A (installation required)
Cooling System Water-Cooled, Thermostatically Controlled
Saltwater Rated Yes
Gear Ratio 2.08:1
Gear Shift Forward-Neutral-Reverse (front mount shifter)
Propeller 8.5″ Dia. X 8.0″ Pitch 3-Blade Aluminum
Internal Battery No
2017 Tohatsu 9.8 HP MFS9.8BS Outboard Motor
What’s in the box?
Fuel Tank (3.1 gallon)
Quick Connect Fuel Line
Aluminum Propeller
Owner’s Manual & Tool Kit
Tohatsu 5-Year Warranty (Ref 819f46)
