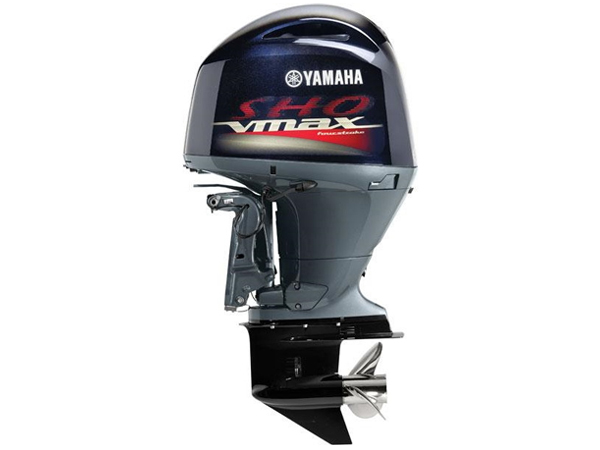

2017 Yamaha VF150 JB VMAX SHO Outboard Motor
Meet the next-gen ln-Line Four V MAX SHOs. Their advanced technology achieves the unthinkable-packing the signature VMAX SHO hole shot, midrange acceleration and super-high-output performance into ingeniously streamlined designs. With 16-valves. double overhead cams and electronic fuel injection, their next-gen tech packages are designed for maximum performance and efficient operation, and their DNA, undeniably V MAX SHO. On a bass or flats boat, or other performance hull, the four-stroke I4 V MAX SHOs will deliver the exhilarating performance that anglers crave and the competition admires.
2017 Yamaha VF150 JB VMAX SHO Outboard Motor
2.8L High Output Four Cylinder
Double Overhead Camshafts
4 Large Radius Valves Per Cylinder
Variable Camshaft Timing
4 Independent Fuel Injectors
Tuned Long Track Induction System
Electronic Multi-Point Precision Fuel Injection
Four-Into-One Exhaust
Blow-By Gas Reburning System
Offset Crankshaft
Counterbalancing technology
Compact, Lightweight Design
2017 Yamaha VF150 JB VMAX SHO Outboard Motor
Year 2017
Manufacturer Yamaha Marine
Model Name VF150
Trim Name JB
Generic Type (Primary) Four Stroke
Engine
Engine Type In-Line Four-Cylinder
Engine Power 150 HP @ 5500 RPM
Alternator (Output): 50 Amp
Displacement 2785cc (170.0 ci)
Gear Ratio (Primary) (28:14) 2.0:1
Lubrication Wet sump
Fuel Type Induction: EFI (DOHC) VCT
Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)
Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)
Capacities
Oil capacity 4.5L/4.3L w/without filter
Range
Note Full Throttle RPM Range: 5000-6000 rpm
Dimensions
Length Shaft: 20″
Bore 3.78 in. (96 mm)
Stroke 3.79 in. (96.2 mm)
Weights
Dry Weight 480 lb (218 kg)
Features
Exhaust Through Propeller
Intake Design Single Electronically Controlled Throttle Valve
Features C.A.R.B. Rating: 3 Star
Note Gear Shift: Forward, Neutral, Reverse
Note Ethanol Blend Limit: 10% Maximum
Compression Ratio 10.3:1
Cooling Thermostatic Control
Ignition System: TCI Micro Computer
Features Degree of Tilt: 70° | Degree of Trim: -4° through +16°
Starter Electric w/PTT
Warranty
Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial (Ref 24b16f)
