Description

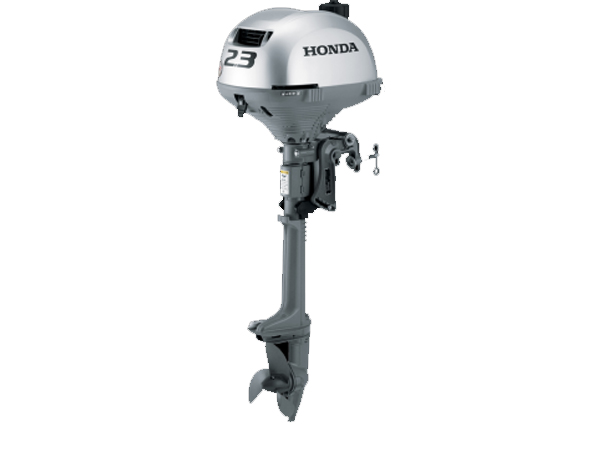

2018 Honda 2.3 Hp BF2.3DHSCH Outboard Motor
The 2.3 HP Honda outboard, with it’s advanced technology, gives you an extra hour of performance on a single tank of gas over other outboards in it’s class. Honda’s high tech motors are the lightest, most compact portable outboards, without sacrificing power, quality or durability. Model 2.3DKSCH Honda outboard is equipped with a 15 inch short shaft and is perfect for small tenders, jon boats or canoes. With the best warranty in the business, you can not go wrong with the Honda 2.3 HP outboard motor.
2018 Honda 2.3 Hp BF2.3DHSCH Outboard Motor
Reliable, efficient 4-stroke design
More power – without sacrificing portability
Lightweight and compact
Precise Throttle Control
Forced air cooled engine – no water pump worries
Ultra low 3 star CARB emissions – Environmentally concious technology
True 5 Warranty – unmatched peace of mind
Easy starting, maintenance free transistor ignition
Easy to carry and install
360° swivel steering – added manueverability
Centrifugal clutch – better performance
Convenient fold down tiller
4-Front Corrosion Protection System – Fights the elements
Internal fuel tank – easier portability
Easy maintenance
Steering friction adjustment
Adjustable trim
Shallow Water Drive
Propeller included
Carburetor drain screw for easy storage prep
Dual lockable transom clamps
Sheer and cotter pin keeper
15 and 20 inch configurations
2018 Honda 2.3 Hp BF2.3DHSCH Outboard Motor
MODEL BF2.3DHSCH
MODEL YEAR 2018
SKU BF2.3DHSCH-18
WEIGHT 29.5000
MANUFACTURER Honda
COUNTRY OF MANUFACTURE China
HORSEPOWER 2.3hp
SHAFT LENGTH 15″ (Short)
STEERING Tiller
STARTING Manual
TRIM & TILT Manual
FUEL DELIVERY Carburetor
FUEL TANK External
CYLINDER(S) 1
DISPLACEMENT 57.2 cc (3.49 cubic in)
BORE AND STROKE 45 x 36 mm (1.8 x 1.4 inches)
FULL THROTTLE RPM RANGE 5,000-6,000 RPM
IGNITION SYSTEM Transitorized Pointless
INDUCTION SCAVENGING OHV
VALVES PER CYLINDER 2
FUEL TYPE Unleaded Gasoline (86 octane)
FUEL TANK / FUEL LINE .29 US gal (1.1L)
OIL TYPE FC-W 10W-30
OIL CAPACITY Please inquire.
LUBRICATION Oil Slinger System
ALTERNATOR N/A
COOLING SYSTEM Forced Air
SALTWATER RATED YES
GEAR RATIO 2.42:1
GEAR SHIFT 360 Degree Pivot
PROPELLER 7-1/4″ Dia. x 4-3/4″ Pitch 3-Blade Polypropylene
INTERNAL BATTERY NO
2018 Honda 2.3 Hp BF2.3DHSCH Outboard Motor
WHAT’S IN THE BOX?
Internal Fuel Tank
3 Blade Polypropylene Propeller
Owner’s Manual & Tool Kit
True 5-Year Warranty (Ref b9228e)
