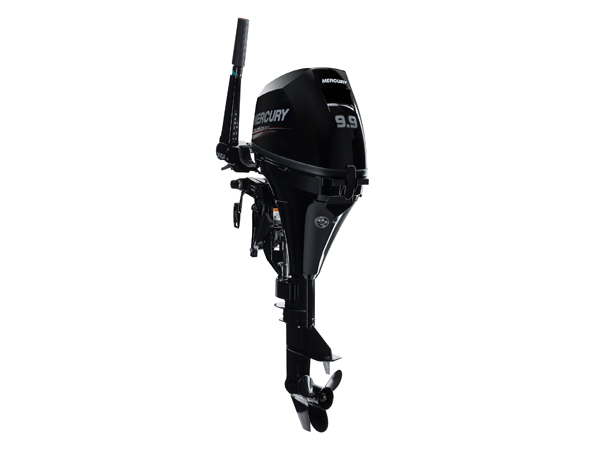

2018 Mercury 9.9 Hp 9.9EH Outboard Motor
The portable 9.9hp Mercury outboard motor is lightweight, compact, and powerful making it a great choice for jon boats, skiffs, and small pontoons as well as sailboat or trolling power. The Mercury 9.9 HP outboard engine is a two cylinder four stroke outboard that delivers quiet, fuel efficient power with Mercury reliability. The Mercury 9.9 HP Outboard Model #: 9.9EH comes equipped with an electric start and a 15 inch shaft, auto ratchet tilt and trim, Mercury multi-function tiller control, and Mercury 3 year factory warranty.
2018 Mercury 9.9 Hp 9.9EH Outboard Motor
Compact and Lightweight
Electric Start + 12V 76W 6A Alternator
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Trim System (5 positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty
2018 Mercury 9.9 Hp 9.9EH Outboard Motor
MODEL 9.9EH
MODEL YEAR 2018
SKU 9.9EH-18
WEIGHT 91.0000
MANUFACTURER Mercury
COUNTRY OF MANUFACTURE Japan
HORSEPOWER 9.9hp
SHAFT LENGTH 15″ (Short)
STEERING Tiller
STARTING Electric
TRIM & TILT Manual
FUEL DELIVERY Carburetor
FUEL TANK External
CYLINDER(S) 2
DISPLACEMENT 208 cc (12.8 cubic inches)
BORE AND STROKE 55 x 44 mm (2.16 x 1.73 inches)
FULL THROTTLE RPM RANGE 5000-6000
IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING SOHC
VALVES PER CYLINDER 2
FUEL TYPE 87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY 27 fl. Oz. (800 ml)
LUBRICATION Trochoid Pump
ALTERNATOR 12V 76W 6A (standard on electric start models)
COOLING SYSTEM Water-Cooled, Thermostatically Controlled
SALTWATER RATED YES
GEAR RATIO 2.08:1
GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)
PROPELLER 8.5″ Diameter X 9.0″ Pitch 3-Blade Aluminum
INTERNAL BATTERY No
2018 Mercury 9.9 Hp 9.9EH Outboard Motor
WHAT’S IN THE BOX?
Fuel Tank (3.2 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit (Ref f5f859)
