Description

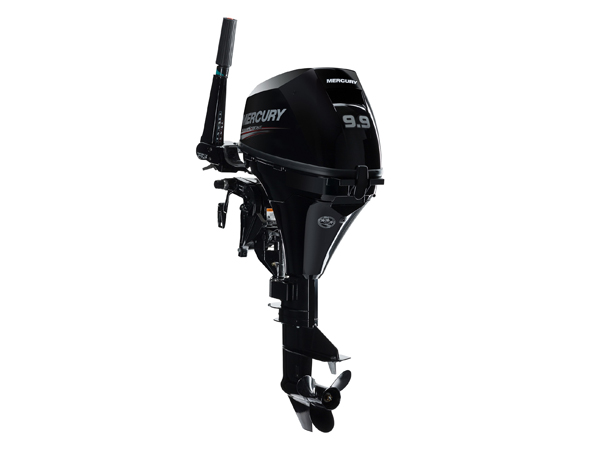

2018 Mercury 9.9 Hp 9.9MLH-CT Outboard Motor
The affordable, portable 2018 Mercury 9.9 HP Outboard motor with Command Thrust delivers power, thrust, and control that wider, heavier boats need. A larger prop increases control and a taller gear case puts the propeller deeper below turbulent water for improved power. The Mercury 9.9 outboard engine is the right choice for sailboat and kicker applications.The 96 lb. 9.9 HP Mercury Outboard Motor model: 9.9MLH-CT is an affordable outboard equipped with a long 20 inch shaft and manual start, Mercury’s 3 year factory warranty, auto ratchet trim, and multi function tiller control.
2018 Mercury 9.9 Hp 9.9MLH-CT Outboard Motor
Compact and Lightweight
Designed for Heavy Applications
BigFoot Lower Unit (2.42:1 Gear Ratio)
High Thrust Propeller
Oversized Anti-Ventilation Plate
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Trim System (5 positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty
2018 Mercury 9.9 Hp 9.9MLH-CT Outboard Motor
MODEL 9.9MLH-CT
MODEL YEAR 2018
SKU 9.9MLH-CT-18
WEIGHT 96.0000
MANUFACTURER Mercury
COUNTRY OF MANUFACTURE Japan
HORSEPOWER 9.9hp
SHAFT LENGTH 20″ (Long)
STEERING Tiller
STARTING Manual
TRIM & TILT Manual
FUEL DELIVERY Carburetor
FUEL TANK External
CYLINDER(S) 2
DISPLACEMENT 208 cc (12.8 cubic inches)
BORE AND STROKE 55 x 44 mm (2.16 x 1.73 inches)
FULL THROTTLE RPM RANGE 5000-6000
IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING SOHC
VALVES PER CYLINDER 2
FUEL TYPE 87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY 27 fl. Oz. (800 ml)
LUBRICATION Trochoid Pump
ALTERNATOR Optional 12V 76W 6A (installation required)
COOLING SYSTEM Water-Cooled, Thermostatically Controlled
SALTWATER RATED YES
GEAR RATIO 2.42:1 BigFoot Gearcase
GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)
PROPELLER BigFoot 4-Blade High Thrust Aluminum Propeller
INTERNAL BATTERY No
2018 Mercury 9.9 Hp 9.9MLH-CT Outboard Motor
WHAT’S IN THE BOX?
Fuel Tank (3.2 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
4-Blade Aluminum Prop
Mercury 5-Stroke Oil
Owner’s Manual & Tool Kit (Ref 250cf8)
