Description

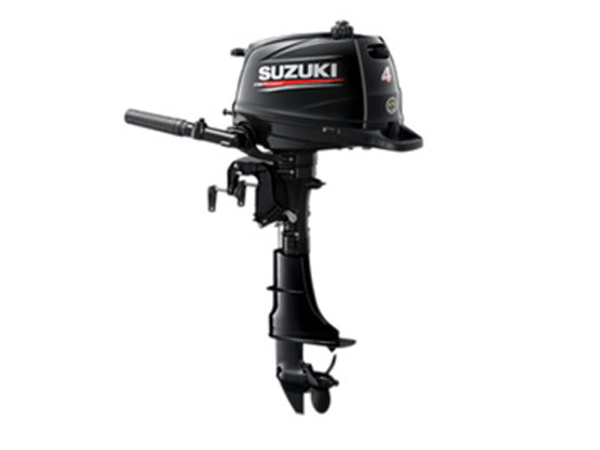

2018 Suzuki Marine 4 HP DF4A Outboard Motor
The DF4A brings 4-stroke performance and efficiency to portable outboards. Compact and lightweight, the DF4 is easy to transport and delivers surprising low- and mid-range torque for quick acceleration.
2018 Suzuki Marine 4 HP DF4A Outboard Motor
Features may include:
Over-Rev. Limiter
Digital CDI
Fresh Water Flushing System
Shallow Water Drive
Suzuki Anti-Corrosion System
2018 Suzuki Marine 4 HP DF4A Outboard Motor
Year
2018
Manufacturer
Suzuki Marine
Model Name
DF4A
Trim Name
Base
Generic Type (Primary)
General
Engine Type
OHV 2-Valve
Cylinder Liners
1
Displacement
8.4 in³ (138 cc)
Bore
2.44 in (62 mm)
Stroke
1.81 in (46 mm)
Engine Power
Max: 4 HP
Engine Torque (rpm)
4000 – 5000 RPM
Gear Ratio (Primary)
1.92:1
Electric
Alternator
12V 6A
Performance
Propulsion System
3 x 7.5 x 6.5
Steering
Tiller
Fuel System
Carburetor
Choke
Manual
Starter
Manual
Ignition
Digital CDI
Dimensions
Transom Height
Recommended: 15″
Capacities
Oil capacity
0.74 qts (0.7 lts)
Weights
Weight
55 lbs
Features
Trim Position: 5 Tilt Pin Positions
2018 Suzuki Marine 4 HP DF4A Outboard Motor
What’s in the box?
3.1 gal. Fuel Tank
Fuel Line
Owner’s Manual
Aluminum Propeller
Tool Kit
Suzuki 3-Yr Warranty (Ref dc6a64)
